Sounds Good to Me in Tempe, AZ, near Phoenix, are car amplifier vehicle installation specialists and authorized dealers of JL Audio stereo amplifiers. We carry HD, XD, Splash, J2, and G series amps in Arizona.
HD Series
HD600/4
Rated Power (4 Channel Mode): 150 W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V)
Rated Power (Bridged to 2 Channel): 300 W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V)
THD at Rated Power: <0.03% @ 4 ohm per ch.
S/N Ratio: >110 dB below rated power
(A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 6 Hz – 30 kHz (+0, -1dB)
Damping Factor: >300 @ 4 ohm per ch. / 50 Hz
>150 @ 2 ohm per ch. / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in.
273 mm x 211 mm x 49 mm
(Width Measurement Includes Plugs)
HD750/1
Rated Power: 750 W RMS @ 1.5 ohm – 4 ohm (11V-14.5V)
THD at Rated Power: <0.03% @ 4 ohm
S/N Ratio: >110dBA below rated power
(A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 6 Hz – 30 kHz (+0, -1dB)
Damping Factor: >500 @ 4 ohm / 50 Hz
>250 @ 2 ohm / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in.
273 mm x 211 mm x 49 mm
(Width Measurement Includes Plugs)
HD900/5
Rated Power Front Channels: 100W RMS x 2 @ 4O (11V – 14.5V) 75W RMS x 2 @ 1.5-3O (11V – 14.5V)
Rated Power Rear Channels: 100W RMS x 2 @ 4O (11V – 14.5V) 75W RMS x 2 @ 1.5-3O (11V – 14.5V)
Rated Power Subwoofer Channel: 500W RMS x 1 @ 1.5-4O (11V – 14.5V)
THD at Rated Power: <0.03% @ 4O (front and rear ch.)
<0.05% @ 5 ohm (subwoofer ch.)
S/N Ratio (Front & Rear Channels): >108.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio (Subwoofer Channel): >95 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response (Front and Rear Channels): 12 Hz – 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel): 12 Hz – 10 kHz (+0, -1dB)
Damping Factor (Front and Rear Channels): >400 @ 4O per ch. / 50 Hz
>200 @ 2O per ch. / 50 Hz
Damping Factor (Subwoofer Channel): >800 @ 4O / 50 Hz
>400 @ 2O / 50 Hz
Input Range: Switchable from 200mV – 2V RMS (Low) to 800mV – 8V RMS (High)
Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in. 273 mm x 211 mm x 49 mm (Width Measurement Includes Plugs)
HD1200_1_FLT_CVR
XD SERIES
XD400/4
Rated Power 14.4 V Stereo: 75W RMS x 4 @ 4 ohms
100W RMS x 4 @ 2 ohms
Rated Power 14.4 V Bridged : 150W RMS x 2 @ 8 ohms
200W RMS x 2 @ 4 ohms
Rated Power 12.5 V Stereo: 60W RMS x 4 @ 4 ohms
90W RMS x 4 @ 2 ohms
Rated Power 12.5 V Bridged: 120W RMS x 2 @ 8 ohms
180W RMS x 2 @ 4 ohms
THD at Rated Power: <1% THD+Noise (20Hz – 20 kHz) S/N Ratio: >104 dB referred to rated power
(A-weighted, 20 Hz-20 kHz noise bandwidth)
>84 dB referred to 1W
(A-weighted, 20 Hz-20 kHz noise bandwidth)
Frequency Response: 12 Hz – 22 kHz (+0, -1dB)
Damping Factor: >150 @ 4 ohms per ch./ 50 Hz
>75 @ 2 ohms per ch. / 50 Hz
Input Range: 100mV – 4V RMS
Dimensions (L x W x H): 8.52 in. x 7.09 in. x 2.05 in.
217 mm x 180 mm x 52 mm
XD600/1
Rated Power: 600 W RMS @ 2 ohm (14.5V)
Rated Power 14.4 V: 400W RMS x 1 @ 4 ohms 600W RMS x 1 @ 2 ohms
Rated Power 12.5 V: 300W RMS x 1 @ 4 ohms 500W RMS x 1 @ 2 ohms
THD at Rated Power: 1% @ 2 ohm
S/N Ratio: >87 dB referred to rated power
(A-weighted, 20 Hz-20 kHz noise bandwidth)
>67 dB referred to 1W
(A-weighted, 20 Hz-20 kHz noise bandwidth)
Frequency Response: 7 Hz – 500 Hz (+0, -1dB)
Damping Factor: >1000 @ 4 ohms / 50 Hz
>500 @ 2 ohms / 50 Hz
Input Range: 100mV – 4V RMS
Dimensions (L x W x H): 8.52 in. x 7.09 in. x 2.05 in.
217 mm x 180 mm x 52 mm
XD600/6
Rated Power 14.4 V Stereo: 75W RMS x 6 @ 4 ohms
100W RMS x 6 @ 2 ohms
Rated Power 14.4 V Bridged : 150W RMS x 3 @ 8 ohms
200W RMS x 3 @ 4 ohms
Rated Power 12.5 V Stereo: 60W RMS x 6 @ 4 ohms
90W RMS x 6 @ 2 ohms
Rated Power 12.5 V Bridged: 120W RMS x 3 @ 8 ohms
180W RMS x 3 @ 4 ohms
THD at Rated Power: <1% THD, 20 Hz – 20 kHz
S/N Ratio: >104 dB referred to rated power
(A-weighted, 20 Hz-20 kHz noise bandwidth)
>84 dB referred to 1W
(A-weighted, 20 Hz-20 kHz noise bandwidth)
Frequency Response: 12 Hz – 22 kHz (+0, -1dB)
Damping Factor: >150 @ 4 ohms per ch./ 50 Hz
>75 @ 2 ohm per ch. / 50 Hz
Input Range: 100mV – 4V RMS
Dimensions (L x W x H): 10.23 in. x 7.09 in. x 2.05 in.
260 mm x 180 mm x 52 mm
“SLASH” Series
250/1v2
Rated Power: 250 W RMS @ 1.5 ohm-4 ohm (11V-14.5V)
THD at Rated Power: <0.05% @ 4 ohm
S/N Ratio (All Channels): >95dB below rated power (A weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 5 Hz – 250 Hz (+0, -1dB)
Damping Factor: >500 @ 4 ohm / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 10.25 in. x 9.25 in. x 2.27 in.
260 mm x 235 mm x 58 mm
300/4v2
Rated Power (4 Channel Mode): 75 W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V)
Rated Power (Bridged to 2 Channel): 150 W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V)
THD at Rated Power: <0.03% @ 4 ohm per ch.
S/N Ratio: >108.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 5 Hz – 30 kHz (+0, -1dB)
Damping Factor: >200 @ 4 ohm per ch. / 50 Hz
>100 @ 2 ohm per ch. / 50 Hz
Slew Rate: ±25 V / µS @ 4 ohm per ch.
Left to Right Channel Separation: >75 dB @ 1 kHz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 13.40 in. x 9.25 in. x 2.36 in.
340 mm x 235 mm x 60 mm

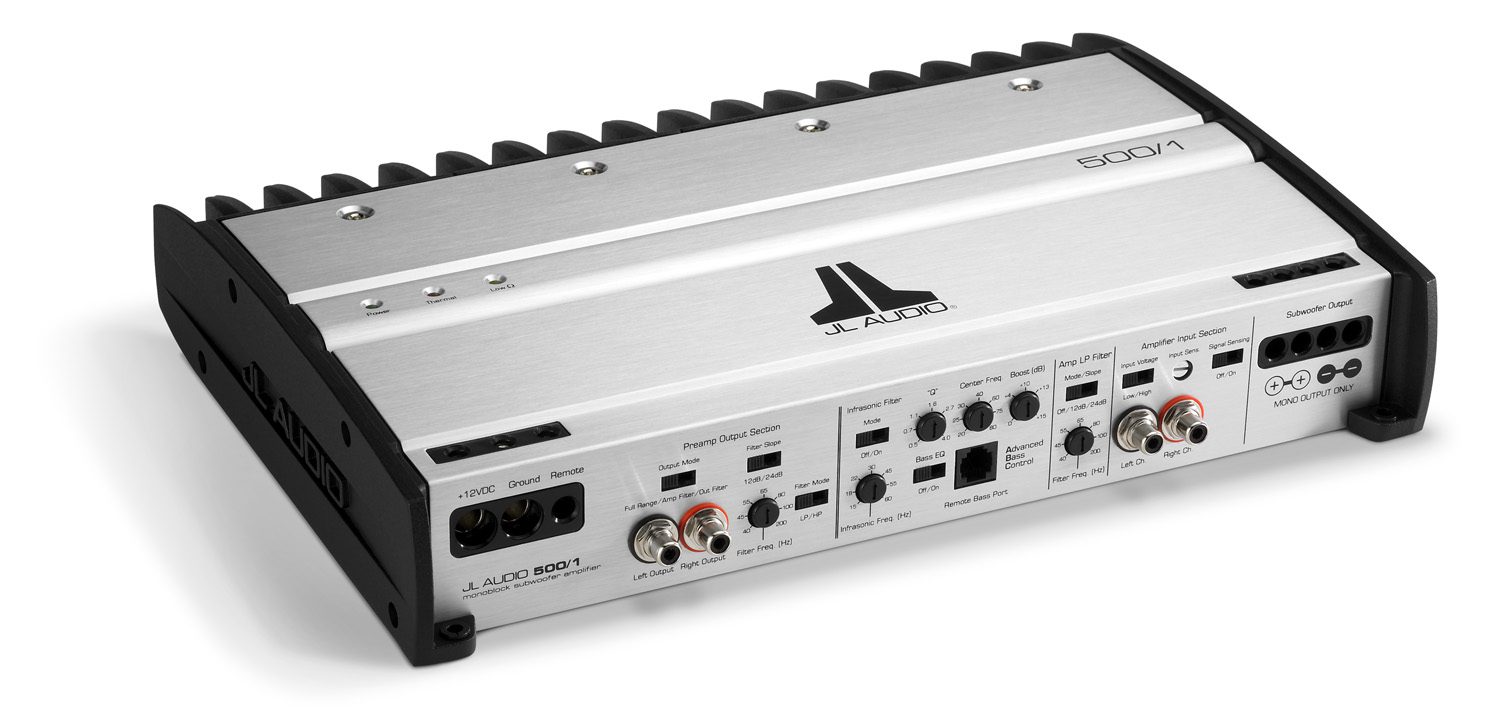

500/1v2
Rated Power: 500 W RMS @ 1.5 ohm – 4 ohm (11V-14.5V)
THD at Rated Power: <0.05% @ 4 ohm
S/N Ratio: >95dB below rated power
(A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 5 Hz – 250 Hz (+0, -1dB)
Damping Factor: >500 @ 4 ohm / 50 Hz
>250 @ 2 ohm / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 13.40 in. x 9.25 in. x 2.36 in.
340 mm x 235 mm x 60 mm
1000/1v2
Rated Power: 1000 W RMS @ 1.5 ohm – 4 ohm (11V-14.5V)
THD at Rated Power: <0.05% @ 4 ohm
S/N Ratio: >95dB below rated power
(A-weighted, 20 Hz – 20 kHz noise bandwidth)
Frequency Response: 5 Hz – 250 Hz (+0, -1dB)
Damping Factor: >500 @ 4 ohm / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions (L x W x H): 19.70 in. x 9.25 in. x 2.36 in.
500 mm x 235 mm x 60 mm
J2 Series
J2 250.1
Rated Power 14.4 V: 175W x 1 @ 4 ohm
250W x 1 @ 2 ohm
THD at Rated Power: 1% @ 4 ohms
Frequency Response: 10 Hz – 100 Hz +/- 1.0 dB
Input Range: 200mV – 4V
Dimensions (L x W x H): 10.60″ x 9.60″ x 2.15″
(269 mm x 244 mm x 55 mm)
J2-250-1-OH
J2 500.1
Rated Power 14.4 V: 340W x 1 @ 4 ohm
500W x 1 @ 2 ohm
THD at Rated Power: 1% @ 4 ohms
Frequency Response: 10 Hz – 100 Hz +/- 1.0 dB
Input Range: 200mV – 4V
Dimensions (L x W x H): 13.20″ x 9.60″ x 2.15″
(335 mm x 242 mm x 55 mm)
J2 1000.1
Rated Power 14.4 V: 400W x 1 @ 4 ohm
700W x 1 @ 2 ohm
1000W x 1 @ 1 ohm
THD at Rated Power: 1% @ 4 ohms
Frequency Response: 10 Hz – 160 Hz +/- 0.5 dB
Input Range: 200mV – 6.5VRMS (Low-Level)
630mV – 20.5 VRMS (High-Level)
Dimensions (L x W x H): 14.60″ x 9.60″ x 2.15″
(371 mm x 244 mm x 55 mm)
J2 320.4
Rated Power 14.4 V: 60W x 4 @ 4 ohm 80W x 4 @ 2 ohm
Rated Power 14.4 V Bridged : 160W x 2 @ 4 ohm
THD at Rated Power: 1% @ 4 ohms
Frequency Response: 10 Hz – 25 kHz +/- 0.5 dB
Input Range: 200mV – 4V (Low-Level)
2V – 10V (High-Level)
Dimensions (L x W x H): 15.40″ x 9.60″ x 2.15″
(391 mm x 244 mm x 55 mm)
G Series
G1300_FRT
G1700_FRT
